autopas::options::VectorizationPatternOption Class Reference

Class representing the choices of possible vectorization patterns for the Pairwise Functors. More...

#include <VectorizationPatternOption.h>

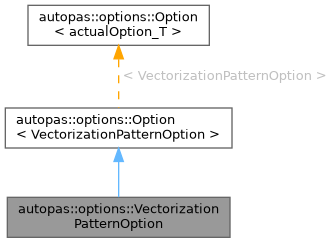

Inheritance diagram for autopas::options::VectorizationPatternOption:

Collaboration diagram for autopas::options::VectorizationPatternOption:

Public Types
enum	Value { p1xVec , p2xVecDiv2 , pVecDiv2x2 , pVecx1 }
	Possible choices for the vector patterns. More...

Public Member Functions
	VectorizationPatternOption ()=default
	Constructor.
constexpr	VectorizationPatternOption (Value option)
	Constructor from value.
constexpr	operator Value () const
	Cast to value.
Public Member Functions inherited from autopas::options::Option< VectorizationPatternOption >
	operator bool ()=delete
	Prevents cast to bool by deleting the conversion operator.
std::string	to_string (bool fixedLength=false) const
	Converts an Option object to its respective string representation.

Static Public Member Functions
static std::set< VectorizationPatternOption >	getDiscouragedOptions ()
	Set of options that are very unlikely to be interesting.
static std::map< VectorizationPatternOption, std::string >	getOptionNames ()
	Provides a way to iterate over the possible choices of Vectorization Patterns.
Static Public Member Functions inherited from autopas::options::Option< VectorizationPatternOption >
static std::set< VectorizationPatternOption >	getAllOptions ()
	Provides a way to iterate over the possible options.
static std::set< VectorizationPatternOption >	getMostOptions ()
	Provides a way to iterate over the possible options minus those that are very unlikely to be on interest.
static size_t	maxStringLength ()
	Returns the number of characters in the string representation of the longest option.
static OutputContainer	parseOptions (const std::string &optionsString)
	Converts a string of options to a set of enums.
static VectorizationPatternOption	parseOptionExact (const std::string &optionString)
	Converts a string to an enum.

Detailed Description

Class representing the choices of possible vectorization patterns for the Pairwise Functors.

Vectorization patterns refer to the specific strategies used to load and arrange particle data into SIMD registers. Different patterns can lead to different SIMD efficiency due to variation in memory access behavior and data locality.

For details and benchmarking results, see: https://doi.org/10.48550/arXiv.2512.03565

Member Enumeration Documentation

Value

enum autopas::options::VectorizationPatternOption::Value

Possible choices for the vector patterns.

Enumerator
p1xVec	Interact one particle from the first list with the full vector length from the second list. | i | i | i | i | i | i | i | i | | j |j+1|j+2|j+3|j+4|j+5|j+6|j+7|
p2xVecDiv2	Interact two particles from the first list with half the vector length from the second list. | i | i | i | i |i+1|i+1|i+1|i+1| | j |j+1|j+2|j+3| j |j+1|j+2|j+3|
pVecDiv2x2	Interact half the vector length from the first list with two particles from the second list. | i |i+1|i+2|i+3| i |i+1|i+2|i+3| | j | j | j | j |j+1|j+1|j+1|j+1|
pVecx1	Interact the full vector length from the first list with one particle from the second list. | i |i+1|i+2|i+3|i+4|i+5|i+6|i+7| | j | j | j | j | j | j | j | j |

Constructor & Destructor Documentation

VectorizationPatternOption()

constexpr autopas::options::VectorizationPatternOption::VectorizationPatternOption ( Value  option )

inlineconstexpr

Constructor from value.

Parameters

option

Member Function Documentation

getDiscouragedOptions()

static std::set< VectorizationPatternOption > autopas::options::VectorizationPatternOption::getDiscouragedOptions ( )

inlinestatic

Set of options that are very unlikely to be interesting.

Returns

getOptionNames()

static std::map< VectorizationPatternOption, std::string > autopas::options::VectorizationPatternOption::getOptionNames ( )

inlinestatic

Provides a way to iterate over the possible choices of Vectorization Patterns.

Returns

map option -> string representation

operator Value()

constexpr autopas::options::VectorizationPatternOption::operator Value ( ) const

inlineconstexpr

Cast to value.

Returns

---

The documentation for this class was generated from the following file:

• autopas/options/VectorizationPatternOption.h
