Class that manages a block of ParticleCells. More...

#include <CellBlock3D.h>

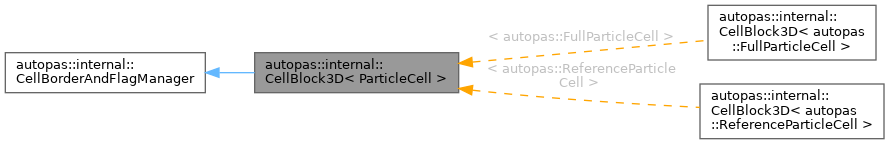

Inheritance diagram for autopas::internal::CellBlock3D< ParticleCell >:

[legend]

Collaboration diagram for autopas::internal::CellBlock3D< ParticleCell >:

Public Types
using	index_t = std::size_t
	The index type to access the particle cells.

Public Types inherited from autopas::internal::CellBorderAndFlagManager
using	index_t = std::size_t
	The index type to access the particle cells.

Public Member Functions
	CellBlock3D (std::vector< ParticleCell > &vec, const std::array< double, 3 > &bMin, const std::array< double, 3 > &bMax, double interactionLength, double cellSizeFactor=1.0)
	Constructor of CellBlock3D.

	CellBlock3D (const CellBlock3D &)=delete
	Deleted copy constructor.

CellBlock3D &	operator= (const CellBlock3D)=delete
	Deleted assignment operator.

bool	cellCanContainHaloParticles (index_t index1d) const override
	Checks if the cell with the one-dimensional index index1d can contain halo particles.

bool	cellCanContainOwnedParticles (index_t index1d) const override
	Checks if the cell with the one-dimensional index index1d can contain owned particles.

ParticleCell &	getCell (index_t index1d) const
	get the ParticleCell of a specified 1d index.

ParticleCell &	getCell (const std::array< index_t, 3 > &index3d) const
	Get the ParticleCell of a specified 3d index.

void	reserve (size_t numParticles)
	Reserve memory for a given number of particles.

void	rebuild (std::vector< ParticleCell > &vec, const std::array< double, 3 > &bMin, const std::array< double, 3 > &bMax, double interactionLength, double cellSizeFactor)
	Rebuild the cell block.

ParticleCell &	getContainingCell (const std::array< double, 3 > &pos) const
	Get the containing cell of a specified position.

std::pair< std::array< double, 3 >, std::array< double, 3 > >	getCellBoundingBox (index_t index1d) const
	Get the lower and upper corner of the cell at the 1d index index1d.

std::pair< std::array< double, 3 >, std::array< double, 3 > >	getCellBoundingBox (const std::array< index_t, 3 > &index3d) const
	Get the lower and upper corner of the cell at the 3d index index3d.

std::array< index_t, 3 >	get3DIndexOfPosition (const std::array< double, 3 > &pos) const
	Get the 3d index of the cell block for a given position.

index_t	get1DIndexOfPosition (const std::array< double, 3 > &pos) const
	Get the 1d index of the cell block for a given position.

const std::array< index_t, 3 > &	getCellsPerDimensionWithHalo () const
	Get the dimension of the cell block including the halo boxes.

bool	checkInHalo (const std::array< double, 3 > &position) const
	Checks whether a given position is inside the halo region of the managed cell block.

void	clearHaloCells ()
	Deletes all particles in the halo cells of the managed cell block.

std::vector< ParticleCell * >	getNearbyHaloCells (const std::array< double, 3 > &position, double allowedDistance) const
	Get the halo cells around a given point.

const std::array< double, 3 > &	getHaloBoxMin () const
	Get the lower corner of the halo region.

const std::array< double, 3 > &	getHaloBoxMax () const
	Get the upper corner of the halo region.

unsigned long	getCellsPerInteractionLength () const
	Get the number of cells per interaction length.

const std::array< double, 3 > &	getCellLength () const
	Get the cell lengths.

index_t	getNumCells () const
	Get the number of cells in this block.

index_t	getFirstOwnedCellIndex () const
	1D id of the first cell that is not in the halo.

index_t	getLastOwnedCellIndex () const
	1D id of the last cell before there are only halo cells left.

Public Member Functions inherited from autopas::internal::CellBorderAndFlagManager
virtual	~CellBorderAndFlagManager ()=default
	Cestructor.

virtual bool	cellCanContainHaloParticles (index_t index1d) const =0
	Checks if the cell with the one-dimensional index index1d can contain halo particles.

virtual bool	cellCanContainOwnedParticles (index_t index1d) const =0
	Checks if the cell with the one-dimensional index index1d can contain owned particles.

bool	ignoreCellForIteration (index_t index1d, IteratorBehavior behavior) const
	Checks if cell with index1d can be ignored for iteration with currently selected behavior.

Detailed Description

template<class ParticleCell>
class autopas::internal::CellBlock3D< ParticleCell >

Class that manages a block of ParticleCells.

It is used to resize the cell block and to handle the conversion of 3d to 1d indices.

Template Parameters

ParticleCell Type of the handled ParticleCells.

Constructor & Destructor Documentation

◆ CellBlock3D()

template<class ParticleCell >

autopas::internal::CellBlock3D< ParticleCell >::CellBlock3D	(	std::vector< ParticleCell > &	vec,
		const std::array< double, 3 > &	bMin,
		const std::array< double, 3 > &	bMax,
		double	interactionLength,
		double	cellSizeFactor = `1.0`
	)

inline

Constructor of CellBlock3D.

Parameters

vec	Vector of ParticleCells that this class manages.
bMin	Lower corner of the cell block.
bMax	Higher corner of the cell block.
interactionLength	Max. radius of interaction between particles.
cellSizeFactor	Cell size factor relative to interactionLength.

Member Function Documentation

◆ cellCanContainHaloParticles()

template<class ParticleCell >

bool autopas::internal::CellBlock3D< ParticleCell >::cellCanContainHaloParticles ( index_t index1d ) const

inlineoverridevirtual

Checks if the cell with the one-dimensional index index1d can contain halo particles.

Parameters

index1d the one-dimensional index of the cell that should be checked

Returns: true if the cell can contain halo particles

Implements autopas::internal::CellBorderAndFlagManager.

◆ cellCanContainOwnedParticles()

template<class ParticleCell >

bool autopas::internal::CellBlock3D< ParticleCell >::cellCanContainOwnedParticles ( index_t index1d ) const

inlineoverridevirtual

Checks if the cell with the one-dimensional index index1d can contain owned particles.

Parameters

index1d the one-dimensional index of the cell that should be checked

Returns: true if the cell can contain owned particles

Implements autopas::internal::CellBorderAndFlagManager.

◆ checkInHalo()

template<class ParticleCell >

bool autopas::internal::CellBlock3D< ParticleCell >::checkInHalo ( const std::array< double, 3 > & position ) const

Checks whether a given position is inside the halo region of the managed cell block.

Parameters

position The given position.

Returns: true if the position is inside the halo region.

◆ get1DIndexOfPosition()

template<class ParticleCell >

CellBlock3D< ParticleCell >::index_t autopas::internal::CellBlock3D< ParticleCell >::get1DIndexOfPosition ( const std::array< double, 3 > & pos ) const

inline

Get the 1d index of the cell block for a given position.

Parameters

pos	the position of interest.

Returns: The 1d cell index.

◆ get3DIndexOfPosition()

template<class ParticleCell >

std::array< typename CellBlock3D< ParticleCell >::index_t, 3 > autopas::internal::CellBlock3D< ParticleCell >::get3DIndexOfPosition ( const std::array< double, 3 > & pos ) const

inline

Get the 3d index of the cell block for a given position.

Note: If pos is outside the domain the returned 3d index is also outside the domain.

Parameters

pos	The position of interest.

Returns: The 3d cell index,

◆ getCell() [1/2]

template<class ParticleCell >

ParticleCell & autopas::internal::CellBlock3D< ParticleCell >::getCell ( const std::array< index_t, 3 > & index3d ) const

inline

Get the ParticleCell of a specified 3d index.

Parameters

index3d The 3D index of the cell.

Returns: Non-const cell reference.

◆ getCell() [2/2]

template<class ParticleCell >

ParticleCell & autopas::internal::CellBlock3D< ParticleCell >::getCell ( index_t index1d ) const

inline

get the ParticleCell of a specified 1d index.

Parameters

index1d The 1D index of the cell.

Returns: Non-const cell reference.

◆ getCellBoundingBox() [1/2]

template<class ParticleCell >

std::pair< std::array< double, 3 >, std::array< double, 3 > > autopas::internal::CellBlock3D< ParticleCell >::getCellBoundingBox ( const std::array< index_t, 3 > & index3d ) const

inline

Get the lower and upper corner of the cell at the 3d index index3d.

Parameters

index3d The 3d cell index.

Returns: std::pair of boxMin (lower corner) and boxMax (upper corner) of the box.

◆ getCellBoundingBox() [2/2]

template<class ParticleCell >

std::pair< std::array< double, 3 >, std::array< double, 3 > > autopas::internal::CellBlock3D< ParticleCell >::getCellBoundingBox ( index_t index1d ) const

inline

Get the lower and upper corner of the cell at the 1d index index1d.

Parameters

index1d The 1d cell index.

Returns: std::pair of boxMin (lower corner) and boxMax (upper corner) of the box.

◆ getCellLength()

template<class ParticleCell >

const std::array< double, 3 > & autopas::internal::CellBlock3D< ParticleCell >::getCellLength ( ) const

inline

Get the cell lengths.

Returns: Array of cell lengths.

◆ getCellsPerDimensionWithHalo()

template<class ParticleCell >

const std::array< index_t, 3 > & autopas::internal::CellBlock3D< ParticleCell >::getCellsPerDimensionWithHalo ( ) const

inline

Get the dimension of the cell block including the halo boxes.

Returns: The dimensions of the cell block.

◆ getCellsPerInteractionLength()

template<class ParticleCell >

unsigned long autopas::internal::CellBlock3D< ParticleCell >::getCellsPerInteractionLength ( ) const

inline

Get the number of cells per interaction length.

Returns: Cells per interaction length.

◆ getContainingCell()

template<class ParticleCell >

ParticleCell & autopas::internal::CellBlock3D< ParticleCell >::getContainingCell ( const std::array< double, 3 > & pos ) const

inline

Get the containing cell of a specified position.

Note: If pos is outside the domain vector->operator[]() will trigger undefined behavior.

Parameters

pos	The position for which the cell is needed.

Returns: Cell at the given position.

◆ getFirstOwnedCellIndex()

template<class ParticleCell >

CellBlock3D< ParticleCell >::index_t autopas::internal::CellBlock3D< ParticleCell >::getFirstOwnedCellIndex

1D id of the first cell that is not in the halo.

Returns

◆ getHaloBoxMax()

template<class ParticleCell >

const std::array< double, 3 > & autopas::internal::CellBlock3D< ParticleCell >::getHaloBoxMax ( ) const

inline

Get the upper corner of the halo region.

Returns: Coordinates of the upper corner.

◆ getHaloBoxMin()

template<class ParticleCell >

const std::array< double, 3 > & autopas::internal::CellBlock3D< ParticleCell >::getHaloBoxMin ( ) const

inline

Get the lower corner of the halo region.

Returns: Coordinates of the lower corner.

◆ getLastOwnedCellIndex()

template<class ParticleCell >

CellBlock3D< ParticleCell >::index_t autopas::internal::CellBlock3D< ParticleCell >::getLastOwnedCellIndex

1D id of the last cell before there are only halo cells left.

Returns

◆ getNearbyHaloCells()

template<class ParticleCell >

std::vector< ParticleCell * > autopas::internal::CellBlock3D< ParticleCell >::getNearbyHaloCells	(	const std::array< double, 3 > &	position,
		double	allowedDistance
	)		const

inline

Get the halo cells around a given point.

Returns a list of halo cells that are at least partially within allowedDistance of the given position. If position is inside a halo cell that cell is also returned.

Note: The 1 norm is used, i.e. the distance is computed for each dimension separately, aka. Manhattan distance)

Parameters

position	Cells close to this position are to be returned.
allowedDistance	The maximal distance to the position.

Returns: A vector of references to nearby halo cells.

◆ getNumCells()

template<class ParticleCell >

CellBlock3D< ParticleCell >::index_t autopas::internal::CellBlock3D< ParticleCell >::getNumCells

Get the number of cells in this block.

Returns

◆ operator=()

template<class ParticleCell >

CellBlock3D & autopas::internal::CellBlock3D< ParticleCell >::operator= ( const CellBlock3D< ParticleCell > )

delete

Deleted assignment operator.

Returns

◆ rebuild()

template<class ParticleCell >

void autopas::internal::CellBlock3D< ParticleCell >::rebuild	(	std::vector< ParticleCell > &	vec,
		const std::array< double, 3 > &	bMin,
		const std::array< double, 3 > &	bMax,
		double	interactionLength,
		double	cellSizeFactor
	)

inline

Rebuild the cell block.

This resizes the cell block and sets the appropriate internal variables.

Parameters

vec	New vector of ParticleCells to which the internal pointer is set.
bMin	New lower corner of the cell block.
bMax	New higher corner of the cell block.
interactionLength	Max. radius of interaction between particles.
cellSizeFactor	Cell size factor relative to interactionLength.

◆ reserve()

template<class ParticleCell >

void autopas::internal::CellBlock3D< ParticleCell >::reserve ( size_t numParticles )

Reserve memory for a given number of particles.

Parameters

numParticles Particles incl. halo particles.

The documentation for this class was generated from the following file:

autopas/containers/CellBlock3D.h

Public Types

Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ CellBlock3D()

Member Function Documentation

◆ cellCanContainHaloParticles()

◆ cellCanContainOwnedParticles()

◆ checkInHalo()

◆ get1DIndexOfPosition()

◆ get3DIndexOfPosition()

◆ getCell() [1/2]

◆ getCell() [2/2]

◆ getCellBoundingBox() [1/2]

◆ getCellBoundingBox() [2/2]

◆ getCellLength()

◆ getCellsPerDimensionWithHalo()

◆ getCellsPerInteractionLength()

◆ getContainingCell()

◆ getFirstOwnedCellIndex()

◆ getHaloBoxMax()

◆ getHaloBoxMin()

◆ getLastOwnedCellIndex()

◆ getNearbyHaloCells()

◆ getNumCells()

◆ operator=()

◆ rebuild()

◆ reserve()
