autopas::VerletNeighborListAsBuild< Particle_T > Class Template Reference

This class implements a neighbor list that remembers which thread added which particle pair and at which color during the build with C08 from LinkedCells. More...

#include <VerletNeighborListAsBuild.h>

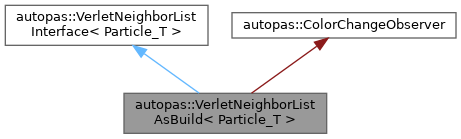

Inheritance diagram for autopas::VerletNeighborListAsBuild< Particle_T >:

Collaboration diagram for autopas::VerletNeighborListAsBuild< Particle_T >:

Public Types
using	AoSThreadNeighborList = std::unordered_map< Particle_T *, std::vector< Particle_T * > >
	This type represents the neighbor list that each thread has for each color.
using	AoSColorNeighborList = std::vector< AoSThreadNeighborList >
	This type represents the thread lists for all colors.
using	SoAThreadNeighborList = std::vector< std::pair< size_t, std::vector< size_t, autopas::AlignedAllocator< size_t > > > >
	This type represents the SoA neighbor list that each thread has for each color.
using	SoAColorNeighborList = std::vector< SoAThreadNeighborList >
	This type represents the SoA thread lists for all colors.

Public Member Functions
	VerletNeighborListAsBuild ()
	Constructor for the VerletNeighborListAsBuild.
ContainerOption	getContainerType () const override
	Returns the ContainerOption this neighbor list is for.
void	buildAoSNeighborList (LinkedCells< Particle_T > &linkedCells, bool useNewton3) override
	Builds the neighbor list from a LinkedCells object.
bool	checkNeighborListValidity (bool useNewton3, double cutoff) override
	Checks if the neighbor list contains all pairs that is should.
const auto &	getAoSNeighborList ()
	Returns the internal AoS neighbor list.
const auto &	getSoANeighborList ()
	Returns the internal SoA neighbor list.
void	receiveColorChange (unsigned long newColor) override
	Gets called when the color changes during the observed traversal.
void	generateSoAFromAoS () override
template<class TFunctor >
auto *	loadSoA (TFunctor *f)
	Loads the particle information in the SoA and returns a pointer to the filled SoA.
template<class TFunctor >
void	extractSoA (TFunctor *f)
	Extracts the particle information out of the SoA returned by loadSoA() before.
bool	isSoAListValid () const override
	Returns whether the SoA is build and up to date with the AoS.
long	getNumberOfNeighborPairs () const override
	Returns the number of neighbor pairs in the list.
Public Member Functions inherited from autopas::VerletNeighborListInterface< Particle_T >
virtual	~VerletNeighborListInterface ()=default
	virtual default destructor
virtual ContainerOption	getContainerType () const =0
	Returns the ContainerOption this neighbor list is for.
virtual void	buildAoSNeighborList (LinkedCells< Particle_T > &linkedCells, bool useNewton3)=0
	Builds the neighbor list from a LinkedCells object.
virtual bool	checkNeighborListValidity (bool useNewton3, double cutoff)=0
	Checks if the neighbor list contains all pairs that is should.
virtual void	generateSoAFromAoS ()=0
	Generates the SoA from the AoS.
virtual bool	isSoAListValid () const =0
	Returns whether the SoA is build and up to date with the AoS.
virtual long	getNumberOfNeighborPairs () const =0
	Returns the number of neighbor pairs in the list.

Friends
class	internal::AsBuildPairGeneratorFunctor< Particle_T, true >
	Adds the generator functor for validation checks as friend so it can call checkPair().
class	internal::AsBuildPairGeneratorFunctor< Particle_T, false >
	Adds the generator functor for adding pairs as friend so it can call addPair().

Detailed Description

template<class Particle_T>
class autopas::VerletNeighborListAsBuild< Particle_T >

This class implements a neighbor list that remembers which thread added which particle pair and at which color during the build with C08 from LinkedCells.

Template Parameters

Particle_T

The particle type the class uses.

Constructor & Destructor Documentation

VerletNeighborListAsBuild()

template<class Particle_T >

autopas::VerletNeighborListAsBuild< Particle_T >::VerletNeighborListAsBuild ( )

inline

Constructor for the VerletNeighborListAsBuild.

Does only default initialization.

Member Function Documentation

buildAoSNeighborList()

template<class Particle_T >

void autopas::VerletNeighborListAsBuild< Particle_T >::buildAoSNeighborList ( LinkedCells< Particle_T > &  linkedCells, bool  useNewton3  )

inlineoverridevirtual

Builds the neighbor list from a LinkedCells object.

This only builds the AoS.

Parameters

linkedCells	The linked cells to use for building the neighbor list.
useNewton3	If true, use newton 3 for the neighbor list.

It executes C08 on the passed LinkedCells container and saves the resulting pairs in the neighbor list, remembering the thread and current color for each pair.

Implements autopas::VerletNeighborListInterface< Particle_T >.

checkNeighborListValidity()

template<class Particle_T >

bool autopas::VerletNeighborListAsBuild< Particle_T >::checkNeighborListValidity ( bool  useNewton3, double  cutoff  )

inlineoverridevirtual

Checks if the neighbor list contains all pairs that is should.

This is very costly, comparable to rebuilding it.

Parameters

useNewton3	If the neighbor list should use newton 3.
cutoff	The cutoff. Two particles that are further away than this distance are not considered.

Returns

If the current neighbor list is valid.

Implements autopas::VerletNeighborListInterface< Particle_T >.

extractSoA()

template<class Particle_T >

template<class TFunctor >

void autopas::VerletNeighborListAsBuild< Particle_T >::extractSoA ( TFunctor *  f )

inline

Extracts the particle information out of the SoA returned by loadSoA() before.

Template Parameters

TFunctor

The type of the functor to use for extracting the particles.

Parameters

f	The functor to use for extracting the particles.

generateSoAFromAoS()

template<class Particle_T >

void autopas::VerletNeighborListAsBuild< Particle_T >::generateSoAFromAoS ( )

inlineoverridevirtual

See also

getSoANeighborList()

Implements autopas::VerletNeighborListInterface< Particle_T >.

getAoSNeighborList()

template<class Particle_T >

const auto & autopas::VerletNeighborListAsBuild< Particle_T >::getAoSNeighborList ( )

inline

Returns the internal AoS neighbor list.

Should be used by traversals.

The internal neighbor list structure is an array of vectors for each color. Each of those vectors contains a neighbor list for each thread. Each of those neighbor lists is a map from particle pointers to a vector containing its neighbor pointers.

Or in short: _aosNeighborList = std::array<AoSColorNeighborList, _numColors> = std::array<std::vector<AoSThreadNeighborList>>, _numColors> = std::array<std::vector<std::unordered_map<Particle_T *, std::vector<Particle_T *>>>, _numColors>

Returns

the internal AoS neighbor list.

getContainerType()

template<class Particle_T >

ContainerOption autopas::VerletNeighborListAsBuild< Particle_T >::getContainerType ( ) const

inlineoverridevirtual

Returns the ContainerOption this neighbor list is for.

Returns

the ContainerOption this neighbor list is for.

Implements autopas::VerletNeighborListInterface< Particle_T >.

getNumberOfNeighborPairs()

template<class Particle_T >

long autopas::VerletNeighborListAsBuild< Particle_T >::getNumberOfNeighborPairs ( ) const

inlineoverridevirtual

Returns the number of neighbor pairs in the list.

Returns

the number of neighbor pairs in the list.

Implements autopas::VerletNeighborListInterface< Particle_T >.

getSoANeighborList()

template<class Particle_T >

const auto & autopas::VerletNeighborListAsBuild< Particle_T >::getSoANeighborList ( )

inline

Returns the internal SoA neighbor list.

Should be used by traversals.

The internal SoA neighbor list structure is an array of vectors for each color. Each of those vectors contains one SoA neighbor list per thread. Each of those SoA neighbor lists is a vector of pairs mimicing a map. Each pair contains an index in the SoA and a vector of the indices of all its neighbors in the SoA.

Or in short: _soaNeighborList = std::array<SoAColorNeighborList, _numColors> = std::array<std::vector<SoAThreadNeighborList>, _numColors> = std::array<std::vector<std::pair<size_t, std::vector<size_t, autopas::AlignedAllocator<size_t>>>>, _numColors>

Returns

the internal SoA neighbor list.

isSoAListValid()

template<class Particle_T >

bool autopas::VerletNeighborListAsBuild< Particle_T >::isSoAListValid ( ) const

inlineoverridevirtual

Returns whether the SoA is build and up to date with the AoS.

Returns

True, if the SoA is up to date with the AoS, false otherwise.

Implements autopas::VerletNeighborListInterface< Particle_T >.

loadSoA()

template<class Particle_T >

template<class TFunctor >

auto * autopas::VerletNeighborListAsBuild< Particle_T >::loadSoA ( TFunctor *  f )

inline

Loads the particle information in the SoA and returns a pointer to the filled SoA.

Template Parameters

TFunctor

The type of the functor to use for loading the particles.

Parameters

f	The functor to use for loading the particles.

Returns

A pointer to the SoA filled. Ownership is not passed.

receiveColorChange()

template<class Particle_T >

void autopas::VerletNeighborListAsBuild< Particle_T >::receiveColorChange ( unsigned long  newColor )

inlineoverridevirtual

Gets called when the color changes during the observed traversal.

Parameters

newColor

The new color that the traversal handles now.

Implements autopas::ColorChangeObserver.

Friends And Related Symbol Documentation

internal::AsBuildPairGeneratorFunctor< Particle_T, false >

template<class Particle_T >

friend class internal::AsBuildPairGeneratorFunctor< Particle_T, false >

friend

Adds the generator functor for adding pairs as friend so it can call addPair().

Parameters

false

test mark that it is for adding pairs.

internal::AsBuildPairGeneratorFunctor< Particle_T, true >

template<class Particle_T >

friend class internal::AsBuildPairGeneratorFunctor< Particle_T, true >

friend

Adds the generator functor for validation checks as friend so it can call checkPair().

Parameters

true	mark that it is for validation checks.

---

The documentation for this class was generated from the following files:

• autopas/containers/verletListsCellBased/varVerletLists/neighborLists/asBuild/AsBuildPairGeneratorFunctor.h
• autopas/containers/verletListsCellBased/varVerletLists/neighborLists/asBuild/VerletNeighborListAsBuild.h
