autopas::VLListIterationC27Traversal< ParticleCell_T, PairwiseFunctor_T > Class Template Reference

This class provides a colored Traversal for the verlet lists container. More...

#include <VLListIterationC27Traversal.h>

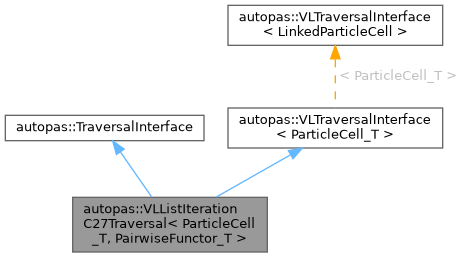

Inheritance diagram for autopas::VLListIterationC27Traversal< ParticleCell_T, PairwiseFunctor_T >:

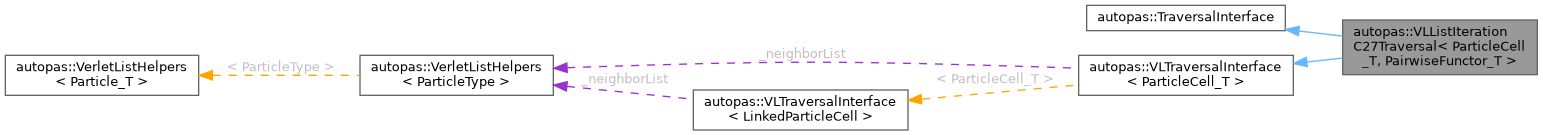

Collaboration diagram for autopas::VLListIterationC27Traversal< ParticleCell_T, PairwiseFunctor_T >:

Public Member Functions
	VLListIterationC27Traversal (PairwiseFunctor_T &pairwiseFunctor, DataLayoutOption dataLayout, bool useNewton3, const std::array< unsigned long, 3 > &cellsPerDim)
	Constructor for colored Verlet Traversal.
TraversalOption	getTraversalType () const override
	Return a enum representing the name of the traversal class.
bool	isApplicableToDomain () const override
	VL List iteration C27 is always applicable to the domain.
void	initTraversal () override
	Initializes the traversal.
void	endTraversal () override
	Finalizes the traversal.
void	traverseParticles () override
	Traverse the particles by pairs, triplets etc.
Public Member Functions inherited from autopas::TraversalInterface
virtual	~TraversalInterface ()=default
	Destructor of TraversalInterface.
	TraversalInterface (DataLayoutOption dataLayout, bool useNewton3)
	Constructor of the TraversalInterface.
virtual TraversalOption	getTraversalType () const =0
	Return a enum representing the name of the traversal class.
virtual bool	isApplicableToDomain () const =0
	Checks if the traversal is applicable to the current state of the domain.
virtual void	initTraversal ()=0
	Initializes the traversal.
virtual void	traverseParticles ()=0
	Traverse the particles by pairs, triplets etc.
virtual void	endTraversal ()=0
	Finalizes the traversal.
bool	getUseNewton3 () const
	Return whether the traversal uses newton 3.
DataLayoutOption	getDataLayout () const
	Return the data layout option.
Public Member Functions inherited from autopas::VLTraversalInterface< ParticleCell_T >
virtual	~VLTraversalInterface ()=default
	Destructor.
virtual void	setCellsAndNeighborLists (std::vector< ParticleCell_T > &cells, VerletListHelpers< ParticleType >::NeighborListCRS &neighborList, const std::unordered_map< const ParticleType *, size_t > &particleToIndex, const std::vector< ParticleType * > &indexToParticle)
	Sets the information the traversal needs for the iteration.

Additional Inherited Members
Protected Attributes inherited from autopas::TraversalInterface
DataLayoutOption	_dataLayout
	The datalayout used by this traversal.
bool	_useNewton3
	If this traversal makes use of newton3.
Protected Attributes inherited from autopas::VLTraversalInterface< ParticleCell_T >
std::vector< ParticleCell_T > *	_cells
	The cells of the underlying linked cells container of the verlet lists container.
VerletListHelpers< ParticleType >::NeighborListCRS *	_neighborList
	The flat CRS neighbor list.
const std::unordered_map< const ParticleType *, size_t > *	_particleToIndex
	Map from particle pointers to their dense SoA index.
const std::vector< ParticleType * > *	_indexToParticle
	Vector mapping SoA indices to particle pointers.

Detailed Description

template<class ParticleCell_T, class PairwiseFunctor_T>
class autopas::VLListIterationC27Traversal< ParticleCell_T, PairwiseFunctor_T >

This class provides a colored Traversal for the verlet lists container.

Template Parameters

ParticleCell_T	the type of cells
PairwiseFunctor_T	The functor that defines the interaction of two particles.

Constructor & Destructor Documentation

VLListIterationC27Traversal()

template<class ParticleCell_T , class PairwiseFunctor_T >

autopas::VLListIterationC27Traversal< ParticleCell_T, PairwiseFunctor_T >::VLListIterationC27Traversal ( PairwiseFunctor_T &  pairwiseFunctor, DataLayoutOption  dataLayout, bool  useNewton3, const std::array< unsigned long, 3 > &  cellsPerDim  )

inlineexplicit

Constructor for colored Verlet Traversal.

Parameters

pairwiseFunctor	Functor to be used with this Traversal
dataLayout
useNewton3
cellsPerDim	Dimensions of the cell grid (needed for coloring)

Member Function Documentation

endTraversal()

template<class ParticleCell_T , class PairwiseFunctor_T >

void autopas::VLListIterationC27Traversal< ParticleCell_T, PairwiseFunctor_T >::endTraversal ( )

inlineoverridevirtual

Finalizes the traversal.

Should be called after traverse().

Implements autopas::TraversalInterface.

getTraversalType()

template<class ParticleCell_T , class PairwiseFunctor_T >

TraversalOption autopas::VLListIterationC27Traversal< ParticleCell_T, PairwiseFunctor_T >::getTraversalType ( ) const

inlineoverridevirtual

Return a enum representing the name of the traversal class.

Returns

Enum representing traversal.

Implements autopas::TraversalInterface.

initTraversal()

template<class ParticleCell_T , class PairwiseFunctor_T >

void autopas::VLListIterationC27Traversal< ParticleCell_T, PairwiseFunctor_T >::initTraversal ( )

inlineoverridevirtual

Initializes the traversal.

Should be called before traverse().

Implements autopas::TraversalInterface.

isApplicableToDomain()

template<class ParticleCell_T , class PairwiseFunctor_T >

bool autopas::VLListIterationC27Traversal< ParticleCell_T, PairwiseFunctor_T >::isApplicableToDomain ( ) const

inlineoverridevirtual

VL List iteration C27 is always applicable to the domain.

Returns

true

Implements autopas::TraversalInterface.

traverseParticles()

template<class ParticleCell_T , class PairwiseFunctor_T >

void autopas::VLListIterationC27Traversal< ParticleCell_T, PairwiseFunctor_T >::traverseParticles ( )

inlineoverridevirtual

Traverse the particles by pairs, triplets etc.

as determined by the Functor type.

Implements autopas::TraversalInterface.

---

The documentation for this class was generated from the following file:

• autopas/containers/verletListsCellBased/verletLists/traversals/VLListIterationC27Traversal.h
