The base class that provides the necessary function definitions that can be applied to an octree. More...

#include <OctreeNodeInterface.h>

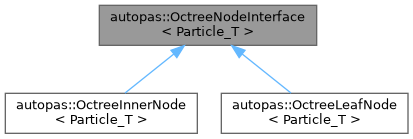

Inheritance diagram for autopas::OctreeNodeInterface< Particle_T >:

[legend]

Public Member Functions
	OctreeNodeInterface (const std::array< double, 3 > &boxMin, const std::array< double, 3 > &boxMax, OctreeNodeInterface< Particle_T > *parent, const int unsigned treeSplitThreshold, const double interactionLength, const double cellSizeFactor)
	Create an octree node interface by initializing the given fields.

virtual	~OctreeNodeInterface ()=default
	To make clang happy.

	OctreeNodeInterface (const OctreeNodeInterface< Particle_T > &)=default
	Default copy constructor.

virtual std::unique_ptr< OctreeNodeInterface< Particle_T > >	insert (const Particle_T &p)=0
	Insert a particle into the octree.

virtual bool	deleteParticle (Particle_T &particle)=0
	Delete the given particle from the data structure.

virtual void	collectAllParticles (std::vector< Particle_T * > &ps) const =0
	Put all particles that are below this node into the vector.

virtual void	appendAllLeafBoxes (std::vector< std::pair< std::array< double, 3 >, std::array< double, 3 > > > &boxes) const =0
	Put the min/max corner coordinates of every leaf into the vector.

virtual void	appendAllLeaves (std::vector< OctreeLeafNode< Particle_T > * > &leaves) const =0
	Put all leaves below this subtree into a given list.

virtual void	clearChildren (std::unique_ptr< OctreeNodeInterface< Particle_T > > &ref)=0
	Delete the entire tree below this node.

virtual size_t	size () const =0
	Get the total number of particles saved in the container (owned + halo + dummy).

virtual size_t	getNumberOfParticles (IteratorBehavior behavior=IteratorBehavior::owned) const =0
	Get the number of particles with respect to the specified IteratorBehavior.

virtual OctreeNodeInterface< Particle_T > *	SON (octree::Octant O)=0
	Get a child node of this node (if there are children) given a specific octant using the spacial structure of the stored children.

virtual bool	hasChildren ()=0
	Check if the node is a leaf or an inner node.

virtual OctreeNodeInterface< Particle_T > *	getChild (int index)=0
	Get a child by its index from the node.

virtual std::set< OctreeLeafNode< Particle_T > * >	getLeavesInRange (const std::array< double, 3 > &min, const std::array< double, 3 > &max)=0
	Find all leaves below this subtree that are in the given range.

bool	isInside (const std::array< double, 3 > &point)
	Check if a 3d point is inside the node's axis aligned bounding box.

bool	enclosesVolumeWithOtherOnAxis (const int axis, const OctreeNodeInterface< Particle_T > *other)
	Check if an octree node's box encloses volume with another octree node's box on a specific axis.

bool	overlapsBox (const std::array< double, 3 > &otherMin, const std::array< double, 3 > &otherMax)
	Check if the node's axis aligned bounding box overlaps with the given axis aligned bounding box.

double	getEnclosedVolumeWith (const std::array< double, 3 > &otherMin, const std::array< double, 3 > &otherMax)
	Calculate the overlap volume between the node's axis aligned bounding box and the given box.

OctreeNodeInterface< Particle_T > *	EQ_FACE_NEIGHBOR (const octree::Face I)
	Find a node (via the pointer structure) that is of equal size of the current node's bounding box, according to the Samet paper.

OctreeNodeInterface< Particle_T > *	EQ_EDGE_NEIGHBOR (const octree::Edge I)
	Find a node (via the pointer structure) that is of equal size of the current node's bounding box, according to the Samet paper.

OctreeNodeInterface< Particle_T > *	EQ_VERTEX_NEIGHBOR (const octree::Vertex I)
	Find a node (via the pointer structure) that is of equal size of the current node's bounding box, according to the Samet paper.

OctreeNodeInterface< Particle_T > *	GTEQ_FACE_NEIGHBOR (octree::Face I)
	Find a node (via the pointer structure) that is of greater than or equal to the size of the current node's bounding box, according to the Samet paper.

OctreeNodeInterface< Particle_T > *	GTEQ_EDGE_NEIGHBOR (octree::Edge I)
	Find a node (via the pointer structure) that is of greater than or equal to the size of the current node's bounding box, according to the Samet paper.

OctreeNodeInterface< Particle_T > *	GTEQ_VERTEX_NEIGHBOR (octree::Vertex I)
	Find a node (via the pointer structure) that is of greater than or equal to the size of the current node's bounding box, according to the Samet paper.

virtual std::vector< OctreeLeafNode< Particle_T > * >	getLeavesFromDirections (const std::vector< octree::Vertex > &directions)=0
	Find all leaf nodes along a list of given directions.

std::vector< OctreeLeafNode< Particle_T > * >	getNeighborLeaves (const octree::Any direction)
	This function combines all required functions when traversing down a subtree of the octree and finding all leaves.

std::set< OctreeLeafNode< Particle_T > * >	getNeighborLeaves ()
	Get the neighbor leaves in all directions.

const std::array< double, 3 > &	getBoxMin () const
	Get the minimum coordinate of the enclosing box.

const std::array< double, 3 > &	getBoxMax () const
	Get the maximum coordinate of the enclosing box.

OctreeNodeInterface< Particle_T > *	getParent () const
	Get the parent node of this node.

Static Public Member Functions
static bool	volumeExistsOnAxis (const int axis, const std::array< double, 3 > &aMin, const std::array< double, 3 > &aMax, const std::array< double, 3 > &bMin, const std::array< double, 3 > &bMax)
	Check if the volume enclosed by two boxes a and b is nonzero on a specific axis.

static double	getEnclosedVolumeWith (const std::array< double, 3 > &aMin, const std::array< double, 3 > &aMax, const std::array< double, 3 > &bMin, const std::array< double, 3 > &bMax)
	Get the enclosed volume between two boxes a and b.

Protected Member Functions
bool	hasParent ()
	Check if this is not the root node.

Protected Attributes
OctreeNodeInterface< Particle_T > *	_parent
	A pointer to the parent node.

std::array< double, 3 >	_boxMin
	The min coordinate of the enclosed volume.

std::array< double, 3 >	_boxMax
	The max coordinate of the enclosed volume.

int unsigned	_treeSplitThreshold
	Maximum number of particles inside a leaf node before the leaf tries to split itself.

double	_interactionLength
	The minimum distance at which a force is considered nonzero, cutoff+skin.

double	_cellSizeFactor
	The cell size factor for this node.

Detailed Description

template<class Particle_T>
class autopas::OctreeNodeInterface< Particle_T >

The base class that provides the necessary function definitions that can be applied to an octree.

Template Parameters

Particle_T

Constructor & Destructor Documentation

◆ OctreeNodeInterface()

template<class Particle_T >

autopas::OctreeNodeInterface< Particle_T >::OctreeNodeInterface	(	const std::array< double, 3 > &	boxMin,
		const std::array< double, 3 > &	boxMax,
		OctreeNodeInterface< Particle_T > *	parent,
		const int unsigned	treeSplitThreshold,
		const double	interactionLength,
		const double	cellSizeFactor
	)

inline

Create an octree node interface by initializing the given fields.

Parameters

boxMin	The minimum coordinate of the enclosing box
boxMax	The maximum coordinate of the enclosing box
parent	A pointer to the parent of this node, may be nullptr for the root.
treeSplitThreshold	Maximum number of particles inside a leaf before it tries to split itself
interactionLength	The minimum distance at which a force is considered nonzero, cutoff+skin.
cellSizeFactor	The cell size factor

Member Function Documentation

◆ appendAllLeafBoxes()

template<class Particle_T >

virtual void autopas::OctreeNodeInterface< Particle_T >::appendAllLeafBoxes ( std::vector< std::pair< std::array< double, 3 >, std::array< double, 3 > > > & boxes ) const

pure virtual

Put the min/max corner coordinates of every leaf into the vector.

Parameters

boxes A reference to the vector that should contain pairs of the min/max corner coordinates

Implemented in autopas::OctreeInnerNode< Particle_T >, and autopas::OctreeLeafNode< Particle_T >.

◆ appendAllLeaves()

template<class Particle_T >

virtual void autopas::OctreeNodeInterface< Particle_T >::appendAllLeaves ( std::vector< OctreeLeafNode< Particle_T > * > & leaves ) const

pure virtual

Put all leaves below this subtree into a given list.

Parameters

leaves A reference to the vector that should contain pointers to the leaves

Implemented in autopas::OctreeInnerNode< Particle_T >, and autopas::OctreeLeafNode< Particle_T >.

◆ clearChildren()

template<class Particle_T >

virtual void autopas::OctreeNodeInterface< Particle_T >::clearChildren ( std::unique_ptr< OctreeNodeInterface< Particle_T > > & ref )

pure virtual

Delete the entire tree below this node.

Parameters

ref	A reference that contains this node

Implemented in autopas::OctreeInnerNode< Particle_T >, and autopas::OctreeLeafNode< Particle_T >.

◆ collectAllParticles()

template<class Particle_T >

virtual void autopas::OctreeNodeInterface< Particle_T >::collectAllParticles ( std::vector< Particle_T * > & ps ) const

pure virtual

Put all particles that are below this node into the vector.

Parameters

ps	A reference to the vector that should contain the particles after the operation

Implemented in autopas::OctreeInnerNode< Particle_T >, and autopas::OctreeLeafNode< Particle_T >.

◆ deleteParticle()

template<class Particle_T >

virtual bool autopas::OctreeNodeInterface< Particle_T >::deleteParticle ( Particle_T & particle )

pure virtual

Delete the given particle from the data structure.

This function does not change the tree layout if the node is empty after the operation.

Parameters

particle

Returns: True if the given pointer still points to a new, valid particle.

Implemented in autopas::OctreeInnerNode< Particle_T >, and autopas::OctreeLeafNode< Particle_T >.

◆ enclosesVolumeWithOtherOnAxis()

template<class Particle_T >

bool autopas::OctreeNodeInterface< Particle_T >::enclosesVolumeWithOtherOnAxis	(	const int	axis,
		const OctreeNodeInterface< Particle_T > *	other
	)

inline

Check if an octree node's box encloses volume with another octree node's box on a specific axis.

Parameters

axis	An axis index (0, 1 or 2)
other	The octree node to check against.

Returns: true iff the enclosed volume is greater than zero, false if the enclosed volume is equal to zero.

◆ EQ_EDGE_NEIGHBOR()

template<class Particle_T >

OctreeNodeInterface< Particle_T > * autopas::OctreeNodeInterface< Particle_T >::EQ_EDGE_NEIGHBOR ( const octree::Edge I )

inline

Find a node (via the pointer structure) that is of equal size of the current node's bounding box, according to the Samet paper.

This function searches along an edge.

Parameters

I	The edge in which direction the search should find a node

Returns: An octree node

◆ EQ_FACE_NEIGHBOR()

template<class Particle_T >

OctreeNodeInterface< Particle_T > * autopas::OctreeNodeInterface< Particle_T >::EQ_FACE_NEIGHBOR ( const octree::Face I )

inline

Find a node (via the pointer structure) that is of equal size of the current node's bounding box, according to the Samet paper.

This function searches along a face.

Parameters

I	The face in which direction the search should find a node

Returns: An octree node

◆ EQ_VERTEX_NEIGHBOR()

template<class Particle_T >

OctreeNodeInterface< Particle_T > * autopas::OctreeNodeInterface< Particle_T >::EQ_VERTEX_NEIGHBOR ( const octree::Vertex I )

inline

Find a node (via the pointer structure) that is of equal size of the current node's bounding box, according to the Samet paper.

This function searches along a vertex.

Parameters

I	The face in which direction the search should find a node

Returns: An octree node

◆ getBoxMax()

template<class Particle_T >

const std::array< double, 3 > & autopas::OctreeNodeInterface< Particle_T >::getBoxMax ( ) const

inline

Get the maximum coordinate of the enclosing box.

Returns: A point in 3D space

◆ getBoxMin()

template<class Particle_T >

const std::array< double, 3 > & autopas::OctreeNodeInterface< Particle_T >::getBoxMin ( ) const

inline

Get the minimum coordinate of the enclosing box.

Returns: A point in 3D space

◆ getChild()

template<class Particle_T >

virtual OctreeNodeInterface< Particle_T > * autopas::OctreeNodeInterface< Particle_T >::getChild ( int index )

pure virtual

Get a child by its index from the node.

Parameters

index The index of the child. Must be between 0 and 7 inclusive.

Returns: A pointer to the child.

Implemented in autopas::OctreeInnerNode< Particle_T >, and autopas::OctreeLeafNode< Particle_T >.

◆ getEnclosedVolumeWith() [1/2]

template<class Particle_T >

static double autopas::OctreeNodeInterface< Particle_T >::getEnclosedVolumeWith	(	const std::array< double, 3 > &	aMin,
		const std::array< double, 3 > &	aMax,
		const std::array< double, 3 > &	bMin,
		const std::array< double, 3 > &	bMax
	)

inlinestatic

Get the enclosed volume between two boxes a and b.

Parameters

aMin	The minimum coordinate of box a
aMax	The maximum coordinate of box b
bMin	The minimum coordinate of box a
bMax	The maximum coordinate of box b

Returns: The enclosed volume or zero if the boxes do not overlap

◆ getEnclosedVolumeWith() [2/2]

template<class Particle_T >

double autopas::OctreeNodeInterface< Particle_T >::getEnclosedVolumeWith	(	const std::array< double, 3 > &	otherMin,
		const std::array< double, 3 > &	otherMax
	)

inline

Calculate the overlap volume between the node's axis aligned bounding box and the given box.

Parameters

otherMin	The minimum coordinate of the other box
otherMax	The maximum coordinate of the other box

Returns: The volume enclosed by the two boxes

◆ getLeavesFromDirections()

template<class Particle_T >

virtual std::vector< OctreeLeafNode< Particle_T > * > autopas::OctreeNodeInterface< Particle_T >::getLeavesFromDirections ( const std::vector< octree::Vertex > & directions )

pure virtual

Find all leaf nodes along a list of given directions.

Parameters

directions A list of allowed directions for traversal.

Returns: A list of leaf nodes

Implemented in autopas::OctreeInnerNode< Particle_T >, and autopas::OctreeLeafNode< Particle_T >.

◆ getLeavesInRange()

template<class Particle_T >

virtual std::set< OctreeLeafNode< Particle_T > * > autopas::OctreeNodeInterface< Particle_T >::getLeavesInRange	(	const std::array< double, 3 > &	min,
		const std::array< double, 3 > &	max
	)

pure virtual

Find all leaves below this subtree that are in the given range.

Parameters

min	The minimum coordinate in 3D space of the query area
max	The maximum coordinate in 3D space of the query area

Returns: A set of all leaf nodes that are in the query region

Implemented in autopas::OctreeInnerNode< Particle_T >, and autopas::OctreeLeafNode< Particle_T >.

◆ getNeighborLeaves() [1/2]

template<class Particle_T >

std::set< OctreeLeafNode< Particle_T > * > autopas::OctreeNodeInterface< Particle_T >::getNeighborLeaves ( )

inline

Get the neighbor leaves in all directions.

Returns: A set of (unique) neighboring leaves

◆ getNeighborLeaves() [2/2]

template<class Particle_T >

std::vector< OctreeLeafNode< Particle_T > * > autopas::OctreeNodeInterface< Particle_T >::getNeighborLeaves ( const octree::Any direction )

inline

This function combines all required functions when traversing down a subtree of the octree and finding all leaves.

Parameters

direction The "original" direction. The leaves will be found along the opposite direction.

Returns: A list of leaf nodes

◆ getNumberOfParticles()

template<class Particle_T >

virtual size_t autopas::OctreeNodeInterface< Particle_T >::getNumberOfParticles ( IteratorBehavior behavior = IteratorBehavior::owned ) const

pure virtual

Get the number of particles with respect to the specified IteratorBehavior.

Warning: : Since this function counts the number of the respective particles in the internal particle storage, this is in O(n) + lock is required. Only use it when it is absolutely necessary to have the exact number of different particle types like owned or halo. If it is enough to have the whole number of particles (owned + halo + dummy), the function size() can be used.

Parameters

behavior Behavior of the iterator, see IteratorBehavior.

Returns: The number of particles with respect to the specified IteratorBehavior.

Implemented in autopas::OctreeInnerNode< Particle_T >, and autopas::OctreeLeafNode< Particle_T >.

◆ getParent()

template<class Particle_T >

OctreeNodeInterface< Particle_T > * autopas::OctreeNodeInterface< Particle_T >::getParent ( ) const

inline

Get the parent node of this node.

Returns: A pointer to the parent, can be nullptr.

◆ GTEQ_EDGE_NEIGHBOR()

template<class Particle_T >

OctreeNodeInterface< Particle_T > * autopas::OctreeNodeInterface< Particle_T >::GTEQ_EDGE_NEIGHBOR ( octree::Edge I )

Find a node (via the pointer structure) that is of greater than or equal to the size of the current node's bounding box, according to the Samet paper.

This function searches along an edge.

Parameters

I	The edge in which direction the search should find a node

Returns: An octree node

◆ GTEQ_FACE_NEIGHBOR()

template<class Particle_T >

OctreeNodeInterface< Particle_T > * autopas::OctreeNodeInterface< Particle_T >::GTEQ_FACE_NEIGHBOR ( octree::Face I )

Find a node (via the pointer structure) that is of greater than or equal to the size of the current node's bounding box, according to the Samet paper.

This function searches along a face.

Parameters

I	The face in which direction the search should find a node

Returns: An octree node

◆ GTEQ_VERTEX_NEIGHBOR()

template<class Particle_T >

OctreeNodeInterface< Particle_T > * autopas::OctreeNodeInterface< Particle_T >::GTEQ_VERTEX_NEIGHBOR ( octree::Vertex I )

Find a node (via the pointer structure) that is of greater than or equal to the size of the current node's bounding box, according to the Samet paper.

This function searches along a vertex.

Parameters

I	The vertex in which direction the search should find a node

Returns: An octree node

◆ hasChildren()

template<class Particle_T >

virtual bool autopas::OctreeNodeInterface< Particle_T >::hasChildren ( )

pure virtual

Check if the node is a leaf or an inner node.

Use this over dynamic_cast to distinguish node types. It is 20-50 times faster! https://stackoverflow.com/a/49296405/7019073

Returns: true iff the node is a leaf, false otherwise.

Implemented in autopas::OctreeInnerNode< Particle_T >, and autopas::OctreeLeafNode< Particle_T >.

◆ hasParent()

template<class Particle_T >

bool autopas::OctreeNodeInterface< Particle_T >::hasParent ( )

inlineprotected

Check if this is not the root node.

Returns: true iff there does not exist a parent for this node.

◆ insert()

template<class Particle_T >

virtual std::unique_ptr< OctreeNodeInterface< Particle_T > > autopas::OctreeNodeInterface< Particle_T >::insert ( const Particle_T & p )

pure virtual

Insert a particle into the octree.

Parameters

p	The particle to insert

Returns: A std::unique_ptr to a newly created subtree or nullptr if the subtree did not change

Implemented in autopas::OctreeInnerNode< Particle_T >, and autopas::OctreeLeafNode< Particle_T >.

◆ isInside()

template<class Particle_T >

bool autopas::OctreeNodeInterface< Particle_T >::isInside ( const std::array< double, 3 > & point )

inline

Check if a 3d point is inside the node's axis aligned bounding box.

(Set by the boxMin and boxMax fields.)

Parameters

point The node to test

Returns: true if the point is inside the node's bounding box and false otherwise

◆ overlapsBox()

template<class Particle_T >

bool autopas::OctreeNodeInterface< Particle_T >::overlapsBox	(	const std::array< double, 3 > &	otherMin,
		const std::array< double, 3 > &	otherMax
	)

inline

Check if the node's axis aligned bounding box overlaps with the given axis aligned bounding box.

Parameters

otherMin	The minimum coordinate of the other box
otherMax	The maximum coordinate of the other box

Returns: true iff the overlapping volume is non-negative

◆ size()

template<class Particle_T >

virtual size_t autopas::OctreeNodeInterface< Particle_T >::size ( ) const

pure virtual

Get the total number of particles saved in the container (owned + halo + dummy).

Returns: Number of particles saved in the container (owned + halo + dummy).

Implemented in autopas::OctreeInnerNode< Particle_T >, and autopas::OctreeLeafNode< Particle_T >.

◆ SON()

template<class Particle_T >

virtual OctreeNodeInterface< Particle_T > * autopas::OctreeNodeInterface< Particle_T >::SON ( octree::Octant O )

pure virtual

Get a child node of this node (if there are children) given a specific octant using the spacial structure of the stored children.

Parameters

O	The octant

Returns: A pointer to a child node

Implemented in autopas::OctreeLeafNode< Particle_T >, and autopas::OctreeInnerNode< Particle_T >.

◆ volumeExistsOnAxis()

template<class Particle_T >

static bool autopas::OctreeNodeInterface< Particle_T >::volumeExistsOnAxis	(	const int	axis,
		const std::array< double, 3 > &	aMin,
		const std::array< double, 3 > &	aMax,
		const std::array< double, 3 > &	bMin,
		const std::array< double, 3 > &	bMax
	)

inlinestatic

Check if the volume enclosed by two boxes a and b is nonzero on a specific axis.

Parameters

axis	An axis index (0, 1 or 2)
aMin	The minimum coordinate of a's volume
aMax	The maximum coordinate of a's volume
bMin	The minimum coordinate of b's volume
bMax	The maximum coordinate of b's volume

Returns: true iff the enclosed volume is greater than zero, false if the enclosed volume is equal to zero.

Member Data Documentation

◆ _parent

template<class Particle_T >

OctreeNodeInterface<Particle_T>* autopas::OctreeNodeInterface< Particle_T >::_parent

protected

A pointer to the parent node.

Can be nullptr (iff this is the root node).

The documentation for this class was generated from the following file:

autopas/containers/octree/OctreeNodeInterface.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ OctreeNodeInterface()

Member Function Documentation

◆ appendAllLeafBoxes()

◆ appendAllLeaves()

◆ clearChildren()

◆ collectAllParticles()

◆ deleteParticle()

◆ enclosesVolumeWithOtherOnAxis()

◆ EQ_EDGE_NEIGHBOR()

◆ EQ_FACE_NEIGHBOR()

◆ EQ_VERTEX_NEIGHBOR()

◆ getBoxMax()

◆ getBoxMin()

◆ getChild()

◆ getEnclosedVolumeWith() [1/2]

◆ getEnclosedVolumeWith() [2/2]

◆ getLeavesFromDirections()

◆ getLeavesInRange()

◆ getNeighborLeaves() [1/2]

◆ getNeighborLeaves() [2/2]

◆ getNumberOfParticles()

◆ getParent()

◆ GTEQ_EDGE_NEIGHBOR()

◆ GTEQ_FACE_NEIGHBOR()

◆ GTEQ_VERTEX_NEIGHBOR()

◆ hasChildren()

◆ hasParent()

◆ insert()

◆ isInside()

◆ overlapsBox()

◆ size()

◆ SON()

◆ volumeExistsOnAxis()

Member Data Documentation

◆ _parent
