TwoCellsInteractionHitrateGenerator.h File Reference

#include <algorithm>
#include <array>
#include <cmath>
#include <random>
#include <vector>
#include "autopas/particles/OwnershipState.h"
#include "autopas/utils/ExceptionHandler.h"

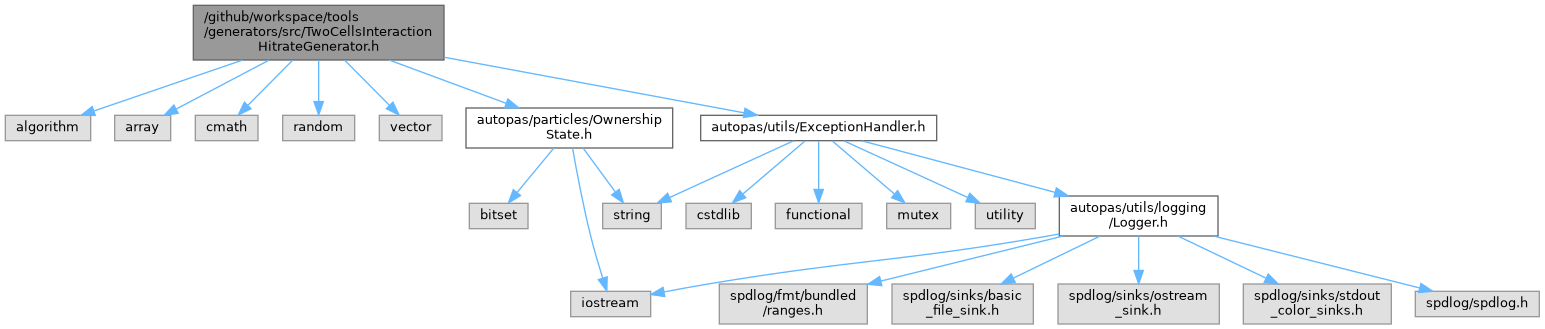

Include dependency graph for TwoCellsInteractionHitrateGenerator.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
template<class Container_T , class Particle_T >
void	autopasTools::generators::TwoCellsInteractionHitrateGenerator::fillWithParticles (Container_T &cell1, Container_T &cell2, const std::array< double, 3 > &boxMin1, const std::array< double, 3 > &boxMax1, const std::array< double, 3 > &boxMin2, const std::array< double, 3 > &boxMax2, std::size_t n, double hitrate, double cutoff, const Particle_T &defaultParticle=Particle_T{}, unsigned int seed=42)
	Fills two cells adjacent in x with n particles each such that exactly round(n * hitrate) particles per cell have a guaranteed in-range partner in the other cell (3D distance < cutoff), and the remaining particles are placed far enough that no cross-cell interaction is possible.

Detailed Description

Date

26.06.2026

Author

hmeyran

Function Documentation

fillWithParticles()

template<class Container_T , class Particle_T >

void autopasTools::generators::TwoCellsInteractionHitrateGenerator::fillWithParticles	(	Container_T &	cell1,
		Container_T &	cell2,
		const std::array< double, 3 > &	boxMin1,
		const std::array< double, 3 > &	boxMax1,
		const std::array< double, 3 > &	boxMin2,
		const std::array< double, 3 > &	boxMax2,
		std::size_t	n,
		double	hitrate,
		double	cutoff,
		const Particle_T &	defaultParticle = Particle_T{},
		unsigned int	seed = 42
	)

Fills two cells adjacent in x with n particles each such that exactly round(n * hitrate) particles per cell have a guaranteed in-range partner in the other cell (3D distance < cutoff), and the remaining particles are placed far enough that no cross-cell interaction is possible.

Preconditions (checked via ExceptionHandler):

• boxMax1[0] == boxMin2[0] — shared boundary
• (boxMax1[0] - boxMin1[0]) > 1.2 * cutoff — cell1 x-extent sufficient for far zone (factor is arbitrary)
• (boxMax2[0] - boxMin2[0]) > 1.2 * cutoff — cell2 x-extent sufficient for far zone (factor is arbitrary)
• hitrate in [0.0, 1.0]

Particle IDs are assigned sequentially starting from defaultParticle.getID(): cell1 particles: [id0, id0 + n) cell2 particles: [id0 + n, id0 + 2n)

Interaction guarantees:

• The first k = round(n * hitrate) particles of cell1 are each within cutoff of the corresponding particle (same index) in cell2 (3D distance = 2·dx < cutoff).
• The remaining n-k far particles have an x-distance >= cutoff to every particle in the other cell, so they produce no cross-cell interactions.

Template Parameters

Container_T	Any container supporting addParticle().
Particle_T	Particle type; must support setR(), setID(), setOwnershipState(), and getID().

Parameters

cell1	First cell (x < boundary).
cell2	Second cell (x >= boundary).
boxMin1	Minimum coordinates of cell1.
boxMax1	Maximum coordinates of cell1. boxMax1[0] must equal boxMin2[0].
boxMin2	Minimum coordinates of cell2. boxMin2[0] must equal boxMax1[0].
boxMax2	Maximum coordinates of cell2.
n	Number of particles per cell.
hitrate	Fraction of particles per cell with a guaranteed in-range cross-cell partner. Must be in [0, 1].
cutoff	Interaction cutoff radius.
defaultParticle	Template particle; IDs are assigned sequentially starting from defaultParticle.getID().
seed	Random seed for reproducibility.
