OctreeDirection.h File Reference

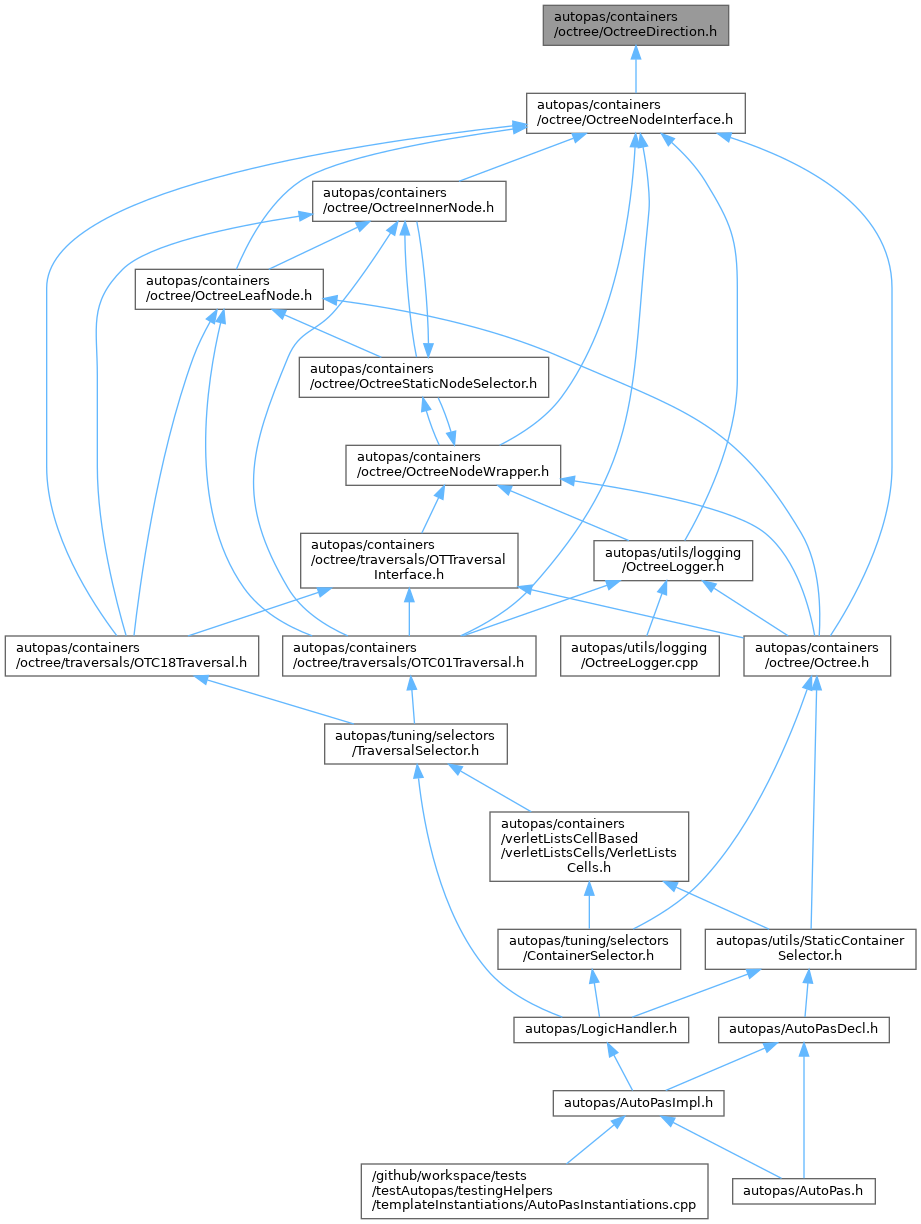

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	autopas
	This is the main namespace of AutoPas.
namespace	autopas::octree
	Namespace that contains code that is used by the octree internally.
namespace	autopas::octree::Tables
	This namespace contains all tables that can be used publicly.
namespace	autopas::octree::anonymous_namespace{OctreeDirection.h}
	This namespace contains the tables that are anonymous within this file.

Typedefs
using	autopas::octree::Any = int unsigned
	A datatype that is wide enough to hold faces, edges or vertices.
using	autopas::octree::Octant = Vertex
	A vertex is also capable of specifying an arbitrary octant in 3D.

Enumerations
enum	autopas::octree::Face : Any {   O = 0 , L = 1 , R = 2 , D = 3 ,   U = 4 , B = 5 , F = 6 }
	This enum can be used to index the faces of a cube including an "invalid" face.
enum	autopas::octree::Edge : Any {   OO = 0 , LD = buildEdge<L, D>() , LU = buildEdge<L, U>() , LB = buildEdge<L, B>() ,   LF = buildEdge<L, F>() , RD = buildEdge<R, D>() , RU = buildEdge<R, U>() , RB = buildEdge<R, B>() ,   RF = buildEdge<R, F>() , DB = buildEdge<D, B>() , DF = buildEdge<D, F>() , UB = buildEdge<U, B>() ,   UF = buildEdge<U, F>() }
	This enum can be used to index all edges of a cube including an "invalid" edge.
enum	autopas::octree::Vertex : Any {   OOO = 0 , LDB = buildVertex<L, D, B>() , LDF = buildVertex<L, D, F>() , LUB = buildVertex<L, U, B>() ,   LUF = buildVertex<L, U, F>() , RDB = buildVertex<R, D, B>() , RDF = buildVertex<R, D, F>() , RUB = buildVertex<R, U, B>() ,   RUF = buildVertex<R, U, F>() }
	This enum can be used to index all vertices of a cube including an "invalid" vertex.

Functions
template<Face f1, Face f2>
static constexpr Any	autopas::octree::buildEdge ()
	Create a bitfield for an edge given by the template parameters.
template<Face f1, Face f2, Face f3>
static constexpr Any	autopas::octree::buildVertex ()
	Create a bitfield for a vertex given by the template parameters.
int	autopas::octree::vertexToIndex (Vertex vertex)
	Map an arbitrary vertex to a flat index.
template<typename T >
bool	autopas::octree::isFace (T f)
	Check if f is a face.
template<typename T >
bool	autopas::octree::isEdge (T e)
	Check if e is an edge.
template<typename T >
bool	autopas::octree::isVertex (T v)
	Check if v is a vertex.
constexpr std::array< std::array< bool, 8 >, 1<< 9 >	autopas::octree::anonymous_namespace{OctreeDirection.h}::createADJTable ()
	A constexpr for creating the table for ADJ().
constexpr std::array< std::array< Octant, 8 >, 1<< 9 >	autopas::octree::anonymous_namespace{OctreeDirection.h}::createREFLECTTable ()
	A constexpr for creating the table for REFLECT().
constexpr std::array< std::array< Face, 8 >, 1<< 9 >	autopas::octree::anonymous_namespace{OctreeDirection.h}::createCOMMONFACETable ()
	A constexpr for creating the table for COMMON_FACE().
constexpr std::array< std::array< Edge, 8 >, 1<< 9 >	autopas::octree::anonymous_namespace{OctreeDirection.h}::createCOMMONEDGETable ()
	A constexpr for creating the table for COMMON_EDGE().
constexpr std::array< Any, 1<< 9 >	autopas::octree::anonymous_namespace{OctreeDirection.h}::createOppositeDirectionTable ()
	A constexpr for creating the table for getOppositeDirection().
constexpr std::array< std::array< Octant, 5 >, 1<< 9 >	autopas::octree::anonymous_namespace{OctreeDirection.h}::createAllowedDirectionsTable ()
	A constexpr for creating the table for getAllowedDirections().
bool	autopas::octree::ADJ (Any direction, Vertex octant)
	This function implements a LUT obtained from the Samet paper: "ADJ(I,O) is true if and only if octant O is adjacent to the Ith face, edge, or vertex of O's containing block".
Octant	autopas::octree::REFLECT (Any direction, Octant octant)
	This function implements a LUT obtained from the Samet paper: "REFLECT(I,O) yields the SONTYPE value of the block of equal size (not necessarily a brother) that shares the Ith face, edge, or vertex of a block having SONTYPE value O".
Face	autopas::octree::COMMON_FACE (Any direction, Vertex octant)
	This function implements a LUT obtained from the Samet paper: "COMMON_FACE(I,O) yields the type on the face (i.e., label), of O's containing block, that is common to octant O and its neighbor in the Ith direction.
Edge	autopas::octree::COMMON_EDGE (Any direction, Vertex octant)
	This function implements a LUT obtained from the Samet paper: "COMMON_EDGE(I,O) yields the type of the edge (i.e., label), of O's containing block, that is common to octant O and its neighbor in the Ith direction.
Any	autopas::octree::getOppositeDirection (Any direction)
	Convert any direction to a direction that is directly opposing the given direction.
std::vector< Octant >	autopas::octree::getAllowedDirections (Any along)
	Get a list of octants that are along the given direction.

Variables
static constexpr std::array< Face, 6 >	autopas::octree::Tables::faces = {L, R, D, U, B, F}
	All available faces for a cube.
static constexpr std::array< Edge, 12 >	autopas::octree::Tables::edges = {LD, LU, LB, LF, RD, RU, RB, RF, DB, DF, UB, UF}
	All available edges for a cube.
static constexpr std::array< Vertex, 8 >	autopas::octree::Tables::vertices = {LDB, LDF, LUB, LUF, RDB, RDF, RUB, RUF}
	All available vertices for a cube.
constexpr std::array< std::array< bool, 8 >, 1<< 9 >	autopas::octree::anonymous_namespace{OctreeDirection.h}::adjTable = createADJTable()
	A LUT containing the entries for ADJ().
constexpr std::array< std::array< Octant, 8 >, 1<< 9 >	autopas::octree::anonymous_namespace{OctreeDirection.h}::reflectTable = createREFLECTTable()
	A LUT containing the entries for REFLECT().
constexpr std::array< std::array< Face, 8 >, 1<< 9 >	autopas::octree::anonymous_namespace{OctreeDirection.h}::commonFaceTable = createCOMMONFACETable()
	A LUT containing the entries for COMMON_FACE().
constexpr std::array< std::array< Edge, 8 >, 1<< 9 >	autopas::octree::anonymous_namespace{OctreeDirection.h}::commonEdgeTable = createCOMMONEDGETable()
	A LUT containing the entries for COMMON_EDGE().
constexpr std::array< Any, 1<< 9 >	autopas::octree::anonymous_namespace{OctreeDirection.h}::oppositeDirectionTable = createOppositeDirectionTable()
	A LUT containing the entries for getOppositeDirection().
constexpr std::array< std::array< Octant, 5 >, 1<< 9 >	autopas::octree::anonymous_namespace{OctreeDirection.h}::allowedDirectionsTable = createAllowedDirectionsTable()
	A LUT containing the entries for getAllowedDirections().

Detailed Description

Author

Johannes Spies

Date

18.05.2021
